What is the ISO Tolerance Chart and How to Use it?

Published

on

Tolerance” is a term in manufacturing that defines accuracy and precision control, the allowable dimensional deviation for any mechanical part or system. For uniformity and efficient quality control, engineers and manufacturers use the ISO Tolerance Chart for this. It is ISO ISO-standardized chart illustrating linear, angular, form, and positioning tolerances for various geometrical features(shaft, holes, fits, etc).

ISO tolerance chart is an essential tool to decide whether manufactured parts are up to the desired specifications and standards or not. We will discuss the use of the ISO tolerance chart, its components, and its significance in manufacturing quality control.

Read More: Sheet Metal Tolerances

Iso Standard Tolerance Chart- 2768

ISO 2768 tolerance is the worldwide used tolerance for linear and angular tolerances, widely applicable in CNC machining tolerances. Designers include ISO 2768 tolerance guidelines in their designs, whereas manufacturers understand and machine the designs to meet specified standard tolerances. This way, consistency can be maintained in the production.

Tolerance class is another factor you need to understand before moving on to chart components; Linear and angular tolerance are presented as fine, coarse, medium, and very-coarse tolerances, whereas positioning tolerances involve H, K, and L classes to define the tolerance levels.

The ISO Tolerance chart-2768 involves metric tolerances for geometrical and positioning dimensions; nominal length in the rows and crossbanding tolerances in the column.

Furthermore, there are two categories of ISO 2768 standards for tolerancing; ISO 2768- 1 and ISO 2768-2.

ISO 2768-1

ISO standard chart 2768- 1 deals with the general tolerances for linear and angular dimensions. It outlines the tolerances for length, angles,  external radius, and chamfer heights. Meanwhile, the tolerances are divided into fine, coarse, medium, and very coarse.

The typical ISO tolerance table/chart of 2768-1 is given below;



Type Nominal Length Range (mm and º) f (Fine) m (Medium) c (Coarse) v (Very Coarse)
Linear Dimensions 0.5 up to 3 ±0.05 ±0.1 ±0.2
Over 3 up to 6 ±0.05 ±0.1 ±0.3 ±0.5
Over 6 up to 30 ±0.1 ±0.2 ±0.5 ±1.0
Over 30 up to 120 ±0.15 ±0.3 ±0.8 ±1.5
Over 120 up to 400 ±0.2 ±0.5 ±1.2 ±2.5
Over 400 up to 1000 ±0.3 ±0.8 ±2.0 ±4.0
Over 1000 up to 2000 ±0.5 ±1.2 ±3.0 ±6.0
Over 2000 up to 4000 ±2.0 ±4.0 ±8.0
External Radius & Chamfer Heights 0.5 up to 3 ±0.2 ±0.2 ±0.4 ±0.4
Over 3 up to 6 ±0.5 ±0.5 ±1.0 ±1.0
Over 6 ±1.0 ±1.0 ±2.0 ±2.0
Angular Dimensions Up to 10º ±1º ±1º ±1º30′ ±3º
Over 10 up to 50º ±0º30′ ±0º30′ ±1º ±2º
Over 50 up to 120º ±0º20′ ±0º20′ ±0º30′ ±1º
Over 120 up to 400º ±0º10′ ±0º10′ ±0º15′ ±0º30′
Over 400º ±0º5′ ±0º5′ ±0º10′ ±0º20′

ISO 2768-2

ISO 276-2 involves positioning tolerance of geometrical features, like symmetry, flatness, perpendicularity, and run out. It also provides tolerances under three classes, H, K, and L. Furthermore, it also provides tolerances over nominal length.

Here is a typical example of an ISO tolerance chart under the 2786-2 standard;

Type Nominal Length Range (mm) H K L
Flatness Up to 10 0.02 0.05 0.1
Over 10 up to 30 0.05 0.1 0.2
Over 30 up to 100 0.1 0.2 0.4
Over 100 up to 300 0.2 0.4 0.8
Over 300 up to 1000 0.3 0.6 1.2
Over 1000 up to 3000 0.4 0.8 1.6
Perpendicularity Up to 100 0.2 0.4 0.6
Over 100 up to 300 0.3 0.6 1
Over 300 up to 1000 0.4 0.8 1.5
Over 1000 up to 3000 0.5 0.8 2
Symmetry Up to 100 0.5 0.6 0.6
Over 100 up to 300 0.5 0.6 1
Over 300 up to 1000 0.5 0.8 1.5
Over 1000 up to 3000 0.5 1 2

Run-Out

All ranges

0.1 0.2 0.5



How to Use the ISO Tolerance Chart?

Adapting ISO standards in GD&T of designs and the machining process needs a tolerance chart. Additionally, it is equally important to know how to use the available tolerance chart. The steps below briefly elaborates the steps how you can use the chart in your project;

  • Identify the Chart Components: Familiarize yourself with the chart format and available information. Additionally, identify the nominal size of the part as all tolerances are given for specific nominal sizes.
  • Choose the Tolerance Grade: Next, decide which tolerance grades you want to use, the values are given in the column with the grade symbols.
  • Find Vales on the Chart: Now locate the tolerance values on the chart corresponding to your nominal dimensions. Then apply the information whether you are creating the designs or machining the designs with ISO tolerancing.

Significances of ISO Tolerance Chart in Manufacturing

CNC machine part

CNC machine part

The ISO tolerances are not only the basis for manufacturing measurements but also important for ensuring the functionality and performance of manufactured items. Additionally, it is also a big deal for the manufacturability of designs.

The standard ISO tolerances provide uniformity in manufacturing worldwide and offer interchangeability. Subsequently, It also maintains the desired dimensional accuracy in production; reducing the number of defective items.

Therefore, it is recommended to choose a manufacturer that has experience working with ISO tolerancing companies like ProleanTech.

Continue Reading

TOPIC

Maximising Your DIY Potential: The Ultimate Folding Workbench for Home Projects

Published

on

By

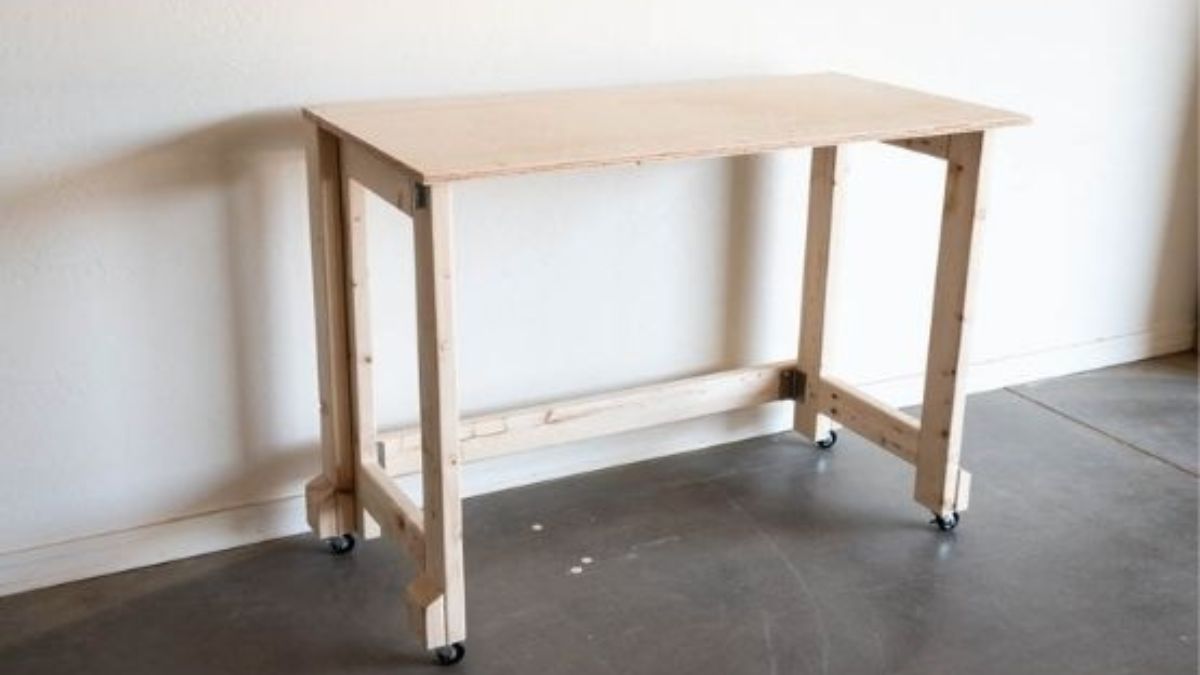

Folding Workbench

Home improvement enthusiasts and DIY aficionados understand the value of having a designated workspace that marries functionality with convenience. In the realm of do-it-yourself projects, a workspace’s utility is often as important as the tools one employs. Given that not everyone has the luxury of ample space, the concept of a folding workbench has become increasingly popular among creative minds and pragmatic homeowners seeking to maximise their DIY potential.

Understanding the Folding Workbench

A folding workbench is an ingenious solution for those who require a sturdy platform for their projects but are constrained by limited space in their living environment. Unlike fixed workbenches, a folding variant provides the flexibility to set up your workstation when needed and then stow it away efficiently after use. This not only contributes to better utilisation of space but also to the tidiness and organisation of the work area.

The benefits of incorporating a folding workbench into your DIY tasks are multifold. It provides robust support for a variety of tasks, from woodworking to metalwork and beyond. Furthermore, its portability means it can easily be transported to various locations within the home or even taken outside, enabling DIY enthusiasts to work in different environments depending on their needs.

Choosing the Right Folding Workbench

When selecting your folding workbench, consider the characteristics that would most benefit your DIY experiences. Prioritise stability, strength, and ease of folding mechanism to ensure smooth transitions between setup and storage. Pay attention also to the work surface material, overall size of the bench when unfolded, and weight capacity, as these factors will directly impact your ability to perform a wide range of tasks.

Another consideration is the additional features some workbenches offer, such as integrated rulers, adjustable angles, clamps, and tool holders. These can further enhance your efficiency, allowing for precise work and quick access to your most frequently used items.

Folding Workbench: A Space-Saving Solution

The space-saving aspect of a folding workbench cannot be overemphasised. For those who live in apartments, small homes, or simply have multifunctional spaces that serve as both living areas and workshops, a foldable design is ideal. It negates the need for a permanent footprint, offering a versatile solution that aligns with modern lifestyle requirements.

Moreover, the streamlined storage opportunities it presents can’t be understated. Most folding workbenches fold flat or into a compact shape that can easily be slipped into narrow spaces, closets, or even hung on a wall. This characteristic is particularly beneficial for urban dwellers, where every square metre of space is at a premium.

Enhancing Your DIY Projects

A well-chosen folding workbench can elevate the quality of your DIY projects. With a solid, reliable work surface at hand, you can focus on precision and craftsmanship. Gone are the days when DIY meant compromising on quality; with the right workbench, sophisticated and professional-grade results are within reach.

The intrinsic versatility of a folding workbench also underscores its ability to adapt to a wide array of projects. Whether you’re working on smaller, detail-oriented pieces or larger-scale constructions, the adaptability of a workbench that can be modified to suit your needs is invaluable.

The Importance of Ergonomics in Your Workspace

An often overlooked aspect of choosing the right workbench is ergonomics. Your workbench should not only accommodate the projects you undertake but also your physical wellbeing. A folding workbench that offers adjustable height can save you from back pain and other physical strain by allowing you to work in a comfortable posture, whether standing or sitting.

Ergonomics also extends to the accessibility of your tools and materials. With a workbench that folds, you can customise the placement of your equipment to ensure everything you need is within arm’s reach, reducing unnecessary movement and increasing productivity.

The Potential of a Foldable Workspace

Embracing the potential of a foldable workspace is about more than just the convenience of storage. It’s about recognising that efficiency, comfort, and productivity can be seamlessly integrated into the modern DIY environment. To truly maximise your DIY potential, consider how the strengths of a folding workbench align with your project goals and personal work preferences.

Ultimately, a folding workbench is more than a simple furnishing—it’s an enabler of creativity and innovation. For those who thrive on bringing their DIY ideas to life, it stands as a testament to the ingenuity that underpins home improvement culture.

In conclusion, whether you’re a seasoned DIY enthusiast or just starting out, the benefits of a folding workbench are hard to ignore. Combining practicality with sophistication, it represents the ultimate tool in addressing the dynamic needs of modern DIY projects. It is a smart investment that facilitates not only space management but also the realisation of your most ambitious home projects.

Continue Reading

TOPIC

Core Drill Bits: The Foundation of Precision Drilling

Published

on

By

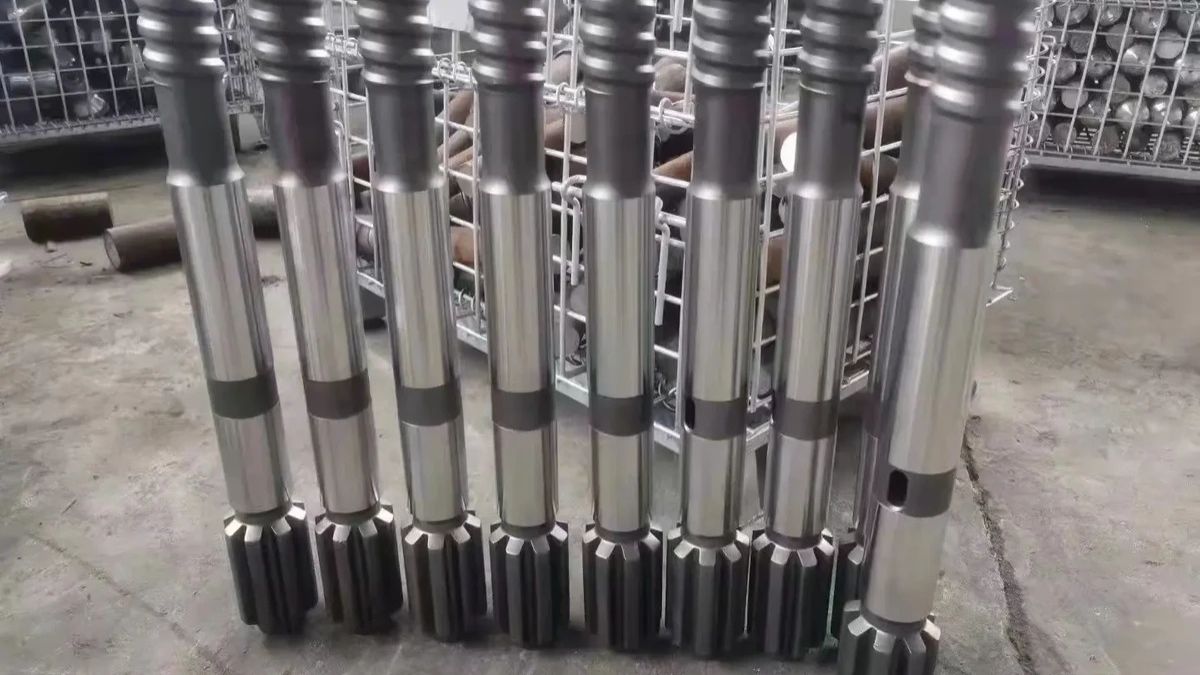

Core Drill Bits
